PARAMETERS:
Memory：External Memory
Recording time reference(16GB): about 290 hours
Type of Internal Storage: C10 TF card
Mobile storage device (PC): Yes
Dimensions and weight: Width × Height × Depth: 56×78×25 (mm),
Weight (with battery): 110g (without back clip)
PC Interface
Operating System: Windows 7,8,10/Vista/XP/2000, Mac OS X, Linux
Port: USB
Voice recording: Mono The bit rate is 128kbps, and the format is MP3
Operating conditions: Temperature: -30℃ ~ 55℃, Air humidity: 10% – 90%, non-condensing
1800P Video
HD, Smooth, Large field of view, Fidelity, Color imaging
1、Camera 2、Video Recording 3、Photo 4、Recording
5、USB/SMTF Card Slot 6、ON/OFF 7、Left / Prior 8、Menu
9、Riaht / Next 10、Shoulder Ch 11、Video Display
KEY FEATURES:
• One-touch voice recording: Just press the voice record button to start recording, and then press again to save the file.
• One-touch video recording: Just press the video record button to start recording, and then press again to save the file.
• Super-wide angle lens to get a fuller picture.
• Super-wide angle lens with more charge to get a clearer picture.
• Double-filter switcher for images without color deviation during the day and clearer images at night.
• On-Screen Display function ensures that all videos and photos contain un-editable timing, product serial number and user serial number that ensure legal validity of such evidence.
• Super long file name: All recorded video files contain information such as product serial number, recording time and user serial number, which ensure convenient data storage and retrieval.
• All recorded video files are automatically cut and saved to prevent data loss due to incorrect operation.
• External memory card supports 256G.
• High-definition speaker: Use high-quality speaker to give you a live feel during audio or video play.
• Record in a common MP3 format.
• Access to the audio file and data by using high-speed USB 2.0.
• It is able to be used as a large capacity USB storage device to ensure the maximum compatibility.
• The damper shaft back clip can be adjusted at any angle, which is flexible and reliable to wear.
| General | Memory | External card up to 512GB |
| Display | 1.5 inch 320x240 TFT LCD | |
| LED Indicator | YES | |
| Flash Light | White LED | |
| USB Connector | Mini USB2.0 | |
| Dimensions(H×W×D) mm | 56x78x25 | |
| Weight (g) | 110 | |
| Wireless transmission | 4G Network | － |
| GPS Positioning | － | |
| WiFi（RTMP） | － | |
| Online Translation (Chinese And English supported currently) |
－ | |
| Speech-to-Text | － | |
| Bluetooth | － | |
| LTE | － | |
| CDMA | － | |
| WCDMA | － | |
| GSM | － | |
| Video and Photo | Encoding & Format | H. 264, MPEG-4 |
| Photo Resolution & Format | 38M,JPEG、 34M,JPEG、 23M,JPEG、 20M,JPEG、 18M,JPEG、 16M,JPEG、 14M,JPEG、 12M,JPEG、 8M,JPEG、 5M,JPEG、 3M,JPEG、 2M,JPEG |
|
| Video Resolution | 2304 x 1296 30fps 1920x 1080 30fps 1280 x 720 30fps 848 x 480 30fps |
|
| Pre-recording | 20s | |
| Post-recording | 5s/10s/15s/30s/60s | |
| Push To Talk over Cellular | － | |
| Voice and video intercom | － | |
| Commander Platform | － | |
| Audio Format | MP3 | |
| Camera | Number of cameras | ONE |
| Front Camera | － | |
| Rear Camera | 130° Wide Angle | |
| Pixel | 38MP | |
| Aperture | F1.8 | |

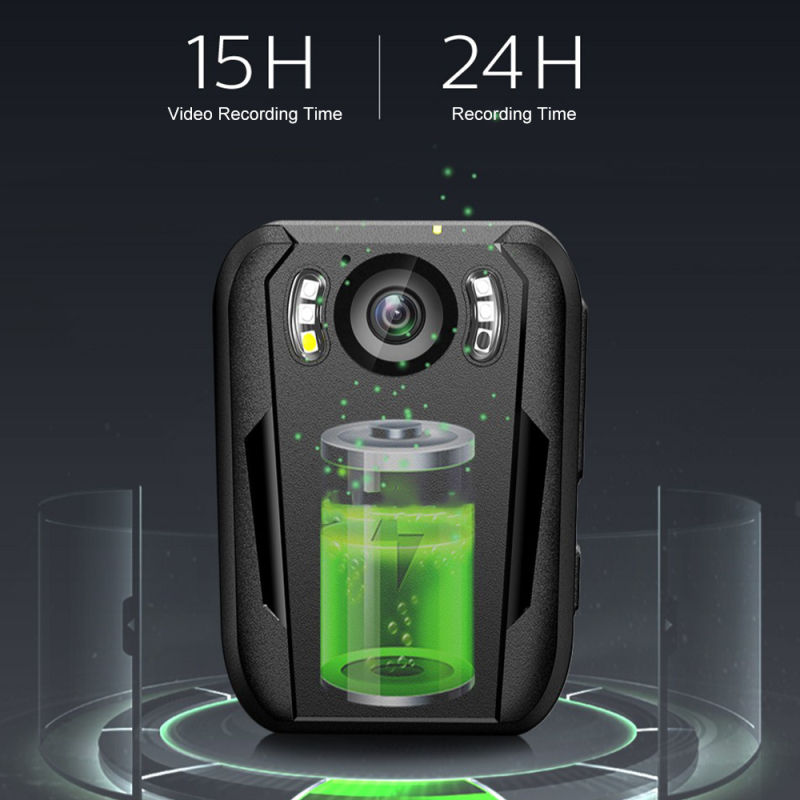

| Battery | Capacity (mAh) | 3400 |
| Backup battery can be replaced | － | |
| Shooting time after full charge | 12H(1080P/30FPS) | |
| Recharging time | 4 Hours | |
| Reliability | Drop Test | 1.5 Meters |
| Dust/ Water Protection | IPX Rating 67 | |
| Operating Environment | -30℃~55℃ | |
| Certificate | CE, RoHS | |
| Others | Night Vision | IR Infrared |
| Face/License Plate Recognition | － | |
| Snapshot | YES | |
| NFC（Near Field Communication) | － | |
| SOS Button | － | |
| Hourly Forecast | － | |
| Voice Prompt (used for start taking video/photo & Stop) |
－ | |
| Voice Control (used for start taking video/photo & Stop) |
－ | |
| Laser light (shooting positioning) | － | |
| Motion Detection | YES | |
| Audio and video recording in car/loop mode | YES | |
| Rotatable back clip | YES | |
| What's In The Box | USB Cable, Back Clip |
